Data Allocation

Preparing The Work

First of all, most .R scripts will follow the same kind of structure:

Preamble

The Preamble is where you set up the most important parameters/guidelines for your coding script. Personally, I highly recommend to make your first line in the preamble read rm(list=ls()). This nifty line of code clears your entire working environment in R meaning that you work from a clean slate thus eliminating all possible interference of previous work. If your code works as intended after this line, it means that your project is internally consistent and self-contained which makes your analysis reproducible (we want that!).

Afterwards, I like to establish a directory (i.e. “folder”) structure. After all, no one likes a cluttered folder on their hard drive.Therefore, we identify our current working directory (wd) with getwd() and save it as an object in R which we call Dir.Base. This is the folder in which our document is located and where R is looking for and saving files to. We don’t want to dump everything there. Conclusively, we need to create our own folders within our project folder. We would like to call these folders “Data” and “Plots” (the purpose of these folders should be obvious from their names). To actually create these folders on your hard drive, we must first establish the folder paths. We do so by using the paste() command in R which combines objects and writes the sep argument between the combined objects. Here, we take the path to our project folder (Dir.Base) and combine it with the name of the folder we want (e.g. “Data”) while using the backslash (“/”) between these two objects as it indicates the jump in a folder hierarchy. The folder is then created using the dir.create() function.

Our preamble then looks like this:

rm(list=ls()) # clearing the entire environment
Dir.Base <- getwd() # identifying the current directory
Dir.Data <- paste(Dir.Base, "Data", sep="/") # generating the folder path for data folder
dir.create(Dir.Data) # creating the data folder
Dir.Plots <- paste(Dir.Base, "Plots", sep="/") # generating the folder path for figures folder
dir.create(Dir.Plots) # creating the figures folder

Usually, this is also where we load packages for more functionality of our analyses. However, this time, we will do so when they are necessary to give you a better overview and explanation what they do.

Coding

All of the important Coding happens after the head and the preamble are written and run in R. Basically, this is the rest of this document.

Downloading NDVI Data

First of all, we need to download the NDVI data that we are interested in. One particularly useful repository for this is the Global Inventory Modelling and Mapping Studies (GIMMS) 3g v.1 data set obtained via the Advanced Very High Resolution Radiometer (AVHRR). This time series goes back all the way to January 1982 and contains bi-weekly, global projects of NDVI values.

Packages

Firstly, we need some packages:
- gimms is a package which enables us to download the GIMMS 3g v.1 data set directly through R
- raster is a package which allows us to establish, handle, and save spatial gridded products of any variable we want (NDVI in this case)
We install and load our packages as follows:

install.packages("gimms") # for GIMMS NDVI data download
library(gimms)
install.packages("raster") # for spatial raster format
library(raster)

Downloading

Let’s download the GIMMS 3g v.1 NDVI data for the entire year of 1982:

gimms_files <- downloadGimms(x = as.Date("1982-01-01"), # download from January 1982
                             y = as.Date("1982-12-31"), # download to December 1982
                             dsn = Dir.Data, # save downloads in data folder
                             quiet = FALSE # show download progress
                             )

Now, we want to turn our downloaded data into a raster so we can do spatial analyses with it:

gimms_raster <- rasterizeGimms(x = gimms_files, # the data we rasterize
                               remove_header = TRUE # we don't need the header of the data
                               )
gimms_raster # some information about the raster stack we created here
## class      : RasterStack
## dimensions : 2160, 4320, 9331200, 24  (nrow, ncol, ncell, nlayers)
## resolution : 0.083, 0.083  (x, y)
## extent     : -180, 180, -90, 90  (xmin, xmax, ymin, ymax)
## crs        : +proj=longlat +datum=WGS84 +no_defs
## names      : ndvi.1.1, ndvi.2.1, ndvi.3.1, ndvi.4.1, ndvi.5.1, ndvi.6.1, ndvi.7.1, ndvi.8.1, ndvi.9.1, ndvi.10.1, ndvi.11.1, ndvi.12.1, ndvi.1.2, ndvi.2.2, ndvi.3.2, ...
## min values :     -0.3,     -0.3,     -0.3,     -0.3,     -0.3,     -0.3,     -0.3,     -0.3,     -0.3,      -0.3,      -0.3,      -0.3,     -0.3,     -0.3,     -0.3, ...
## max values :     0.99,     0.99,     1.00,     0.99,     0.99,     0.99,     1.00,     1.00,     0.99,      0.99,      1.00,      1.00,     1.00,     1.00,     1.00, ...

Here, you can see that we have successfully created a RasterStack with 24 layers (two for each month because measurements were bi-weekly), for the entire earth (extent of -180, 180, -90, 90). We can also see that there are some values below 0 which we don’t expect for the NDVI and we will fix this in a second. For now, just notice that we have successfully downloaded the data.

Aggregating NDVI Data

With our data successfully downloaded, it is now time to prepare the data further for our analysis.

Composites

Firstly, we want to deal with monthly NDVI values. To do so, we want to build monthly maximum composites. Luckily, the gimms package has just the right option for us:

indices <- monthlyIndices(gimms_files) # generate month indices from the data
gimms_raster_mvc <- monthlyComposite(gimms_raster, # the data
                                     indices = indices # the indices
                                     )
gimms_raster_mvc # some information about our monthly composite raster stack
## class      : RasterStack
## dimensions : 2160, 4320, 9331200, 12  (nrow, ncol, ncell, nlayers)
## resolution : 0.083, 0.083  (x, y)
## extent     : -180, 180, -90, 90  (xmin, xmax, ymin, ymax)
## crs        : +proj=longlat +datum=WGS84 +no_defs
## names      : index_1.1, index_1.2, index_1.3, index_1.4, index_1.5, index_1.6, index_1.7, index_1.8, index_1.9, index_1.10, index_1.11, index_1.12
## min values :     -0.30,     -0.30,     -0.30,     -0.29,     -0.30,     -0.30,     -0.30,     -0.30,     -0.30,      -0.30,      -0.30,      -0.30
## max values :      0.99,      1.00,      0.99,      1.00,      0.99,      1.00,      1.00,      1.00,      1.00,       1.00,       0.99,       0.99

As you can see above, our new raster stack has the same dimensions, resolution, coordinate reference system (crs), and extent as the previous one. However, we have reduced the number of layers to 12 (one for each month).

Since there are still negative values present (an artifact of how NASA stores the data or cloud cover), we simply set these to 0:

Negatives <- which(values(gimms_raster_mvc) < 0) # identify all negative values
values(gimms_raster_mvc)[Negatives] <- 0 # set threshold for barren land (NDVI<0)
gimms_raster_mvc
## class      : RasterBrick
## dimensions : 2160, 4320, 9331200, 12  (nrow, ncol, ncell, nlayers)
## resolution : 0.083, 0.083  (x, y)
## extent     : -180, 180, -90, 90  (xmin, xmax, ymin, ymax)
## crs        : +proj=longlat +datum=WGS84 +no_defs
## source     : memory
## names      : index_1.1, index_1.2, index_1.3, index_1.4, index_1.5, index_1.6, index_1.7, index_1.8, index_1.9, index_1.10, index_1.11, index_1.12
## min values :         0,         0,         0,         0,         0,         0,         0,         0,         0,          0,          0,          0
## max values :      0.99,      1.00,      0.99,      1.00,      0.99,      1.00,      1.00,      1.00,      1.00,       1.00,       0.99,       0.99

See how all of the min values are now on 0!

Lastly, we want to see what our data looks like (visual inspection is an important step to sanity check your work). We do so as follows:

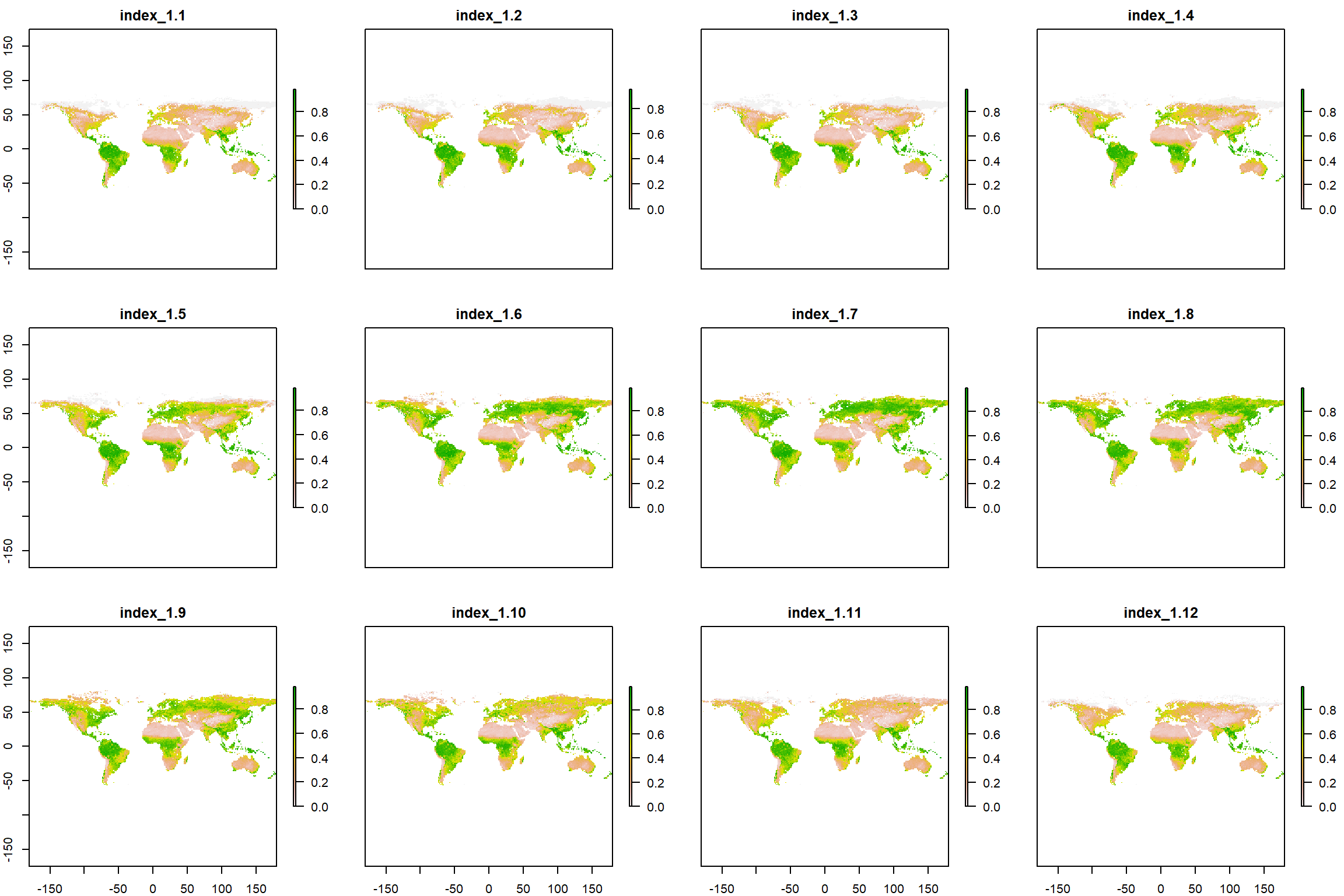

plot(gimms_raster_mvc)

What a beautiful seasonal trend of greening we can observe (I’ll stop nerding out here before it get’s out of hand, don’t worry)!

Annual Values

Lastly, we may wish (and in fact, you will have to) aggregate our data to annual and even more-than-annual means and seasonality measures.

Mean Values

To establish annual mean values, we simply take the mean for each cell in our raster stack for all the layers as such:

gimms_annual <- calc(gimms_raster_mvc, # data from which to calculate
                     fun=mean, # function which to calculate with
                     na.rm = TRUE # ignore NAs
                     )

Seasonality Values

Measures of seasonality are defined as the span between the maximum value of a cell and the minimum value of the same cell. So, we calculate a maximum raster and a minimum raster and then simply subtract the minimum from the maximum as follows:

maxi <- calc(gimms_raster_mvc, fun=max)
mini <- calc(gimms_raster_mvc, fun=min)
gimms_seasonality <- maxi-mini

Plots

Let’s have a look at our annual mean and seasonality:

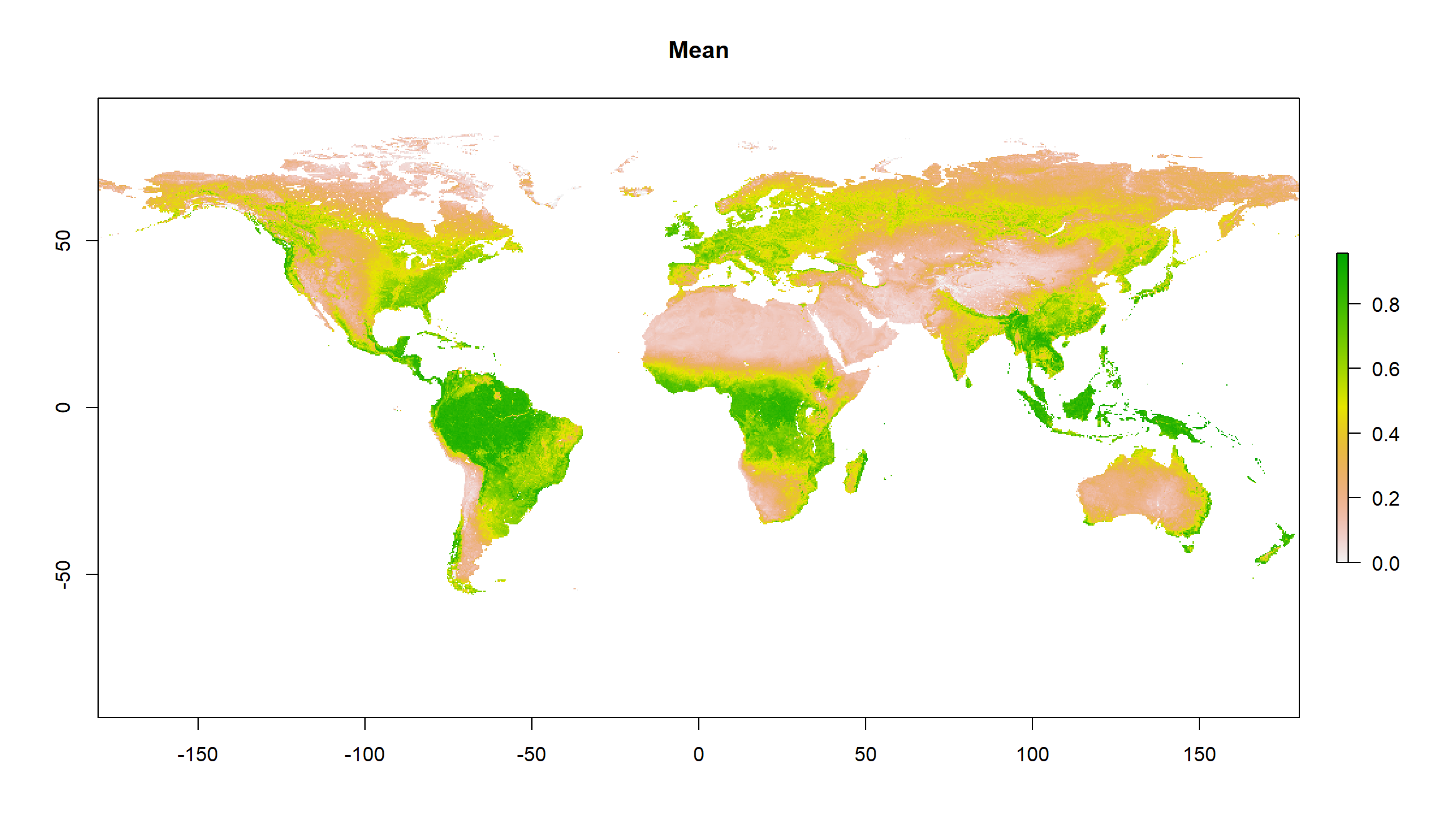

plot(gimms_annual, main = "Mean")

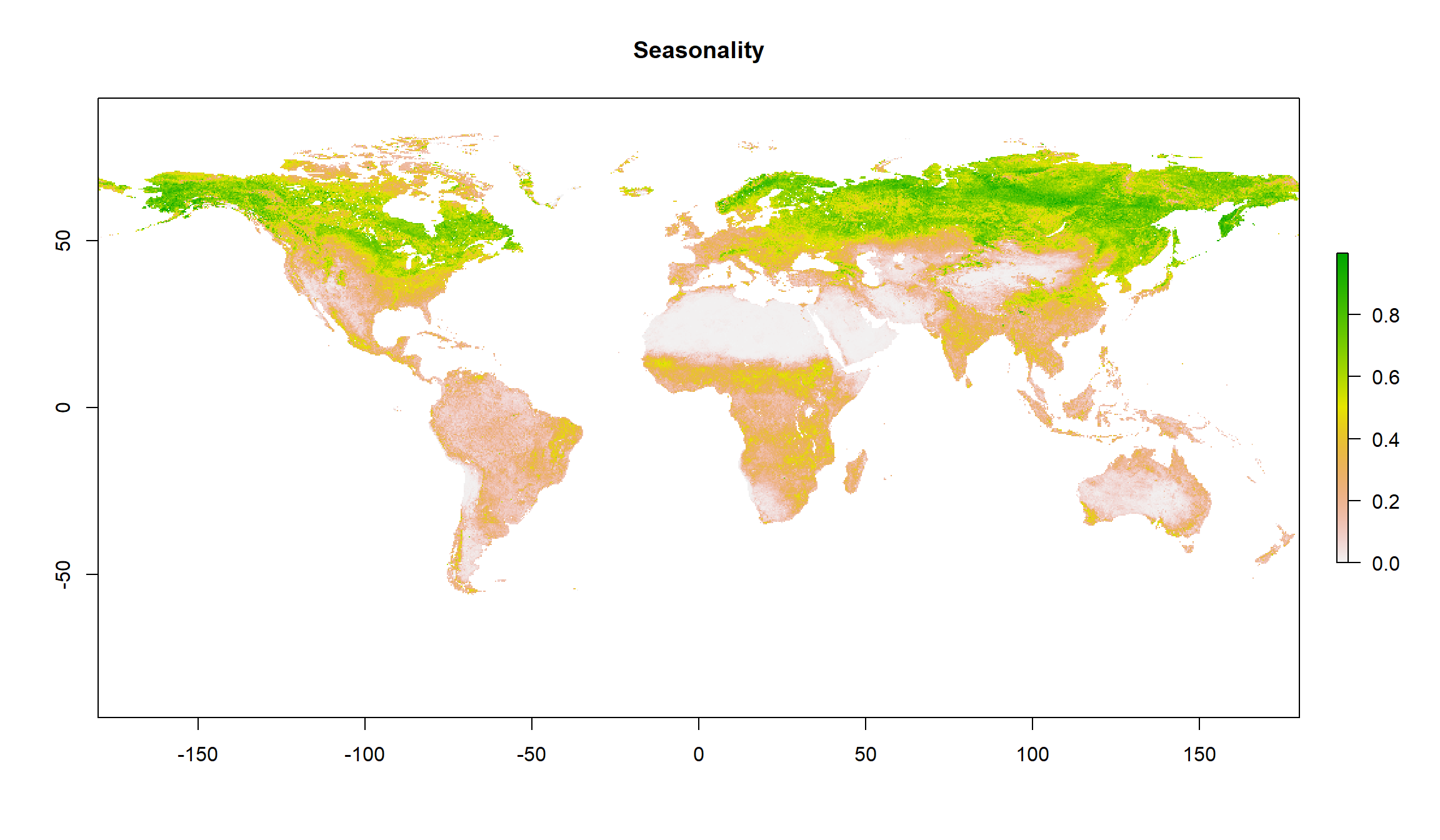

plot(gimms_seasonality, main = "Seasonality")

Cropping NDVI Data

Our data is still on a global scale. We are only interested in data across Alaska, though. Let’s deal with that.

Packages & Data

Again, we have to install some packages and load them.

install.packages("sp") # for spatialpolygons format
library(sp)
install.packages("rgdal") # for shapefiles
library(rgdal)

Secondly, we require the actual shape files. Personally, I am a big fan of the Natural Earth Shape files () because of all the different shape files I can get there. Here, we are interested in states/provinces and so want to download the data from here: . Thankfully, Rlet’s us do the downloading as well as the unpacking of archived (.zip) data:

# Downloading
download.file("https://www.naturalearthdata.com/http//www.naturalearthdata.com/download/10m/cultural/ne_10m_admin_1_states_provinces.zip",
              destfile = paste(Dir.Data, "Shapes.zip", sep="/")) # destination file
# Unzipping
unzip(paste(Dir.Data, "Shapes.zip", sep="/"), # which file to unzip
      exdir = Dir.Data) # where to unzip to

Finally, we want to load our shape files into R. We do this using the readOGR() function in R:

Shapes <- readOGR(Dir.Data, # where to look for the file
                  "ne_10m_admin_1_states_provinces", # the file name
                  verbose = FALSE) # we don't want an overview of the loaded data

Crop & Mask

Now, we are ready to use our shape file for Alaska. First, we have to find out which of our shape files is for Alaska:

Position <- which(Shapes$name_en == "Alaska") # find the english name that's "Alaska" in our shapefiles
Alaska_Shp <- Shapes[Position,] # extract the Alaska shapefile

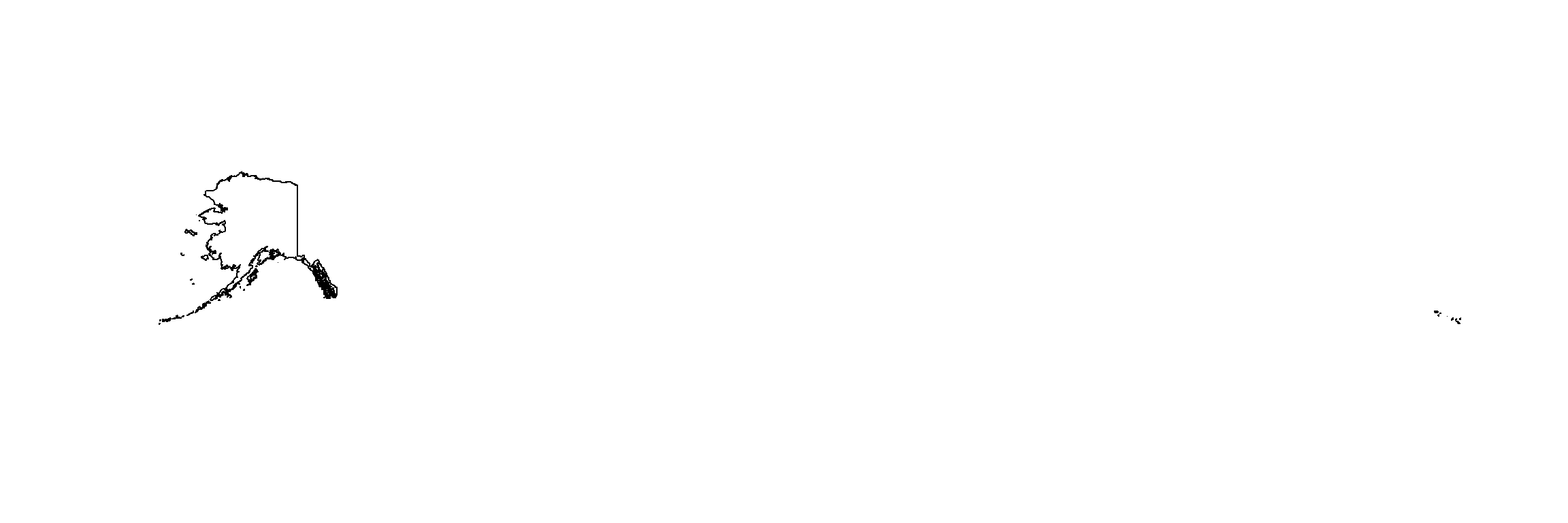

plot(Alaska_Shp) # plot it for inspection

We really don’t care much about that island chain all the way to the right in our plot.

This is likely to be an extent-caused issue and we should crop our shape file extent to the easternmost point of Alaska on the continent:

extent(Alaska_Shp) # extent clearly shows the super-eastern coordinates
## class      : Extent
## xmin       : -179
## xmax       : 180
## ymin       : 51
## ymax       : 71
# Crop
Alaska_Shp <- crop(Alaska_Shp, # what to crop
                   extent(-190, -130, 51, 71)) # which extent to crop to

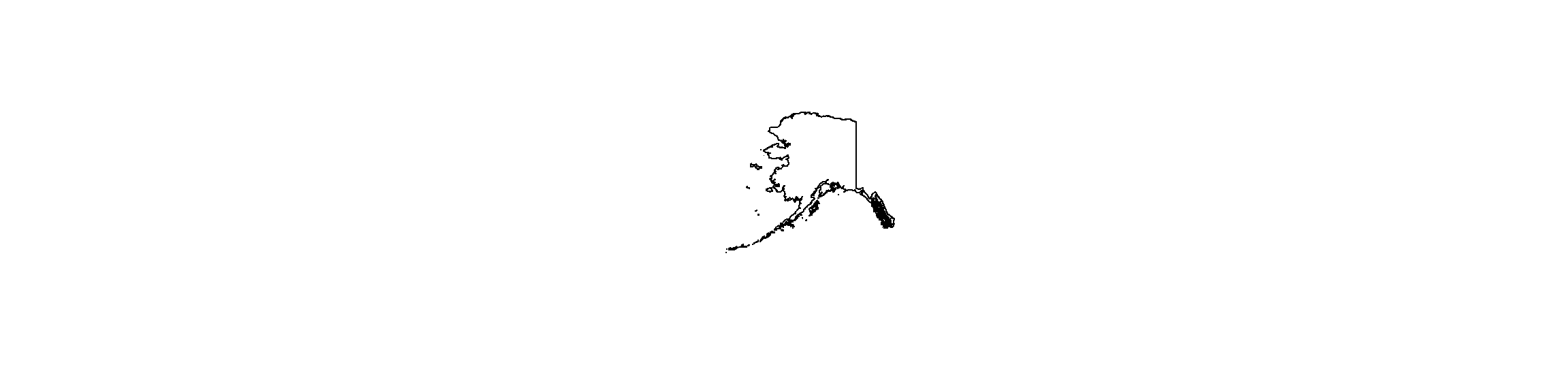

plot(Alaska_Shp) # visualising the cropped product

Lovely. That resolved the issue. We are ready for final cropping of our data and saving of the cropped data.

Mean Values

Let’s deal with the annual mean for 1982:

# Crop
gimms_annual <- crop(gimms_annual, # mean annual data
                     extent(Alaska_Shp)) # cropped Alaska extent
# Mask (this keeps only cells that fall into our shapefile)
gimms_annual <- mask(gimms_annual, # cropped annual means
                     Alaska_Shp) # cropped Alaska shapefile

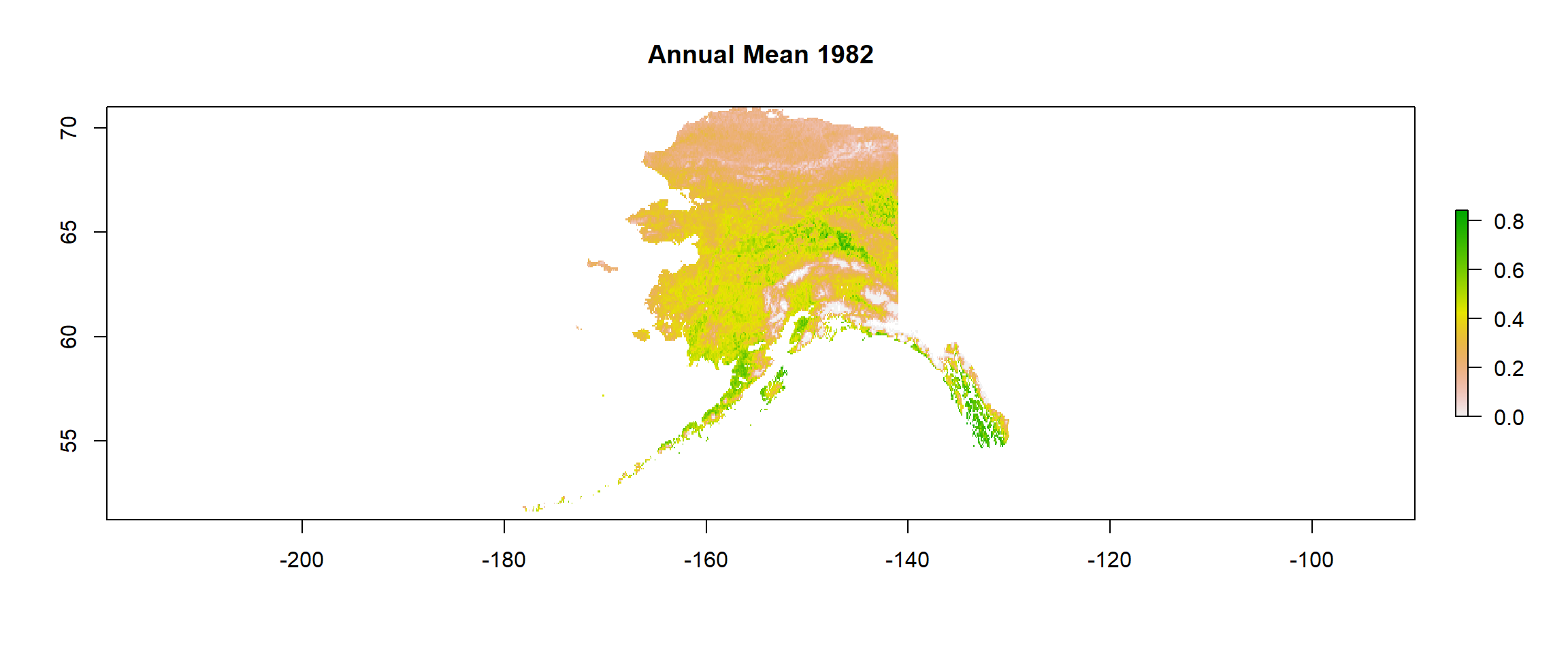

plot(gimms_annual, main ="Annual Mean 1982") # inspection time!

# Save data
writeRaster(x = gimms_annual, # which raster to save
            file = paste(Dir.Data, "1982Mean", sep="/"), # which file to save to
            format = "CDF", overwrite = TRUE) # which format to use and whether to overwrite
## class      : RasterLayer
## dimensions : 237, 590, 139830  (nrow, ncol, ncell)
## resolution : 0.083, 0.083  (x, y)
## extent     : -179, -130, 51, 71  (xmin, xmax, ymin, ymax)
## crs        : +proj=longlat +datum=WGS84 +no_defs
## source     : D:/Documents/Website/content/courses/BFTP - Biome Detection/Data/1982Mean.nc
## names      : layer
## values     : 0, 0.84  (min, max)
## zvar       : layer

Seasonality Values

# Crop
gimms_seasonality <- crop(gimms_seasonality, # mean seasonality data
                     extent(Alaska_Shp)) # cropped Alaska extent
# Mask (this keeps only cells that fall into our shapefile)
gimms_seasonality <- mask(gimms_seasonality, # cropped seasonality data
                     Alaska_Shp) # cropped Alaska shapefile

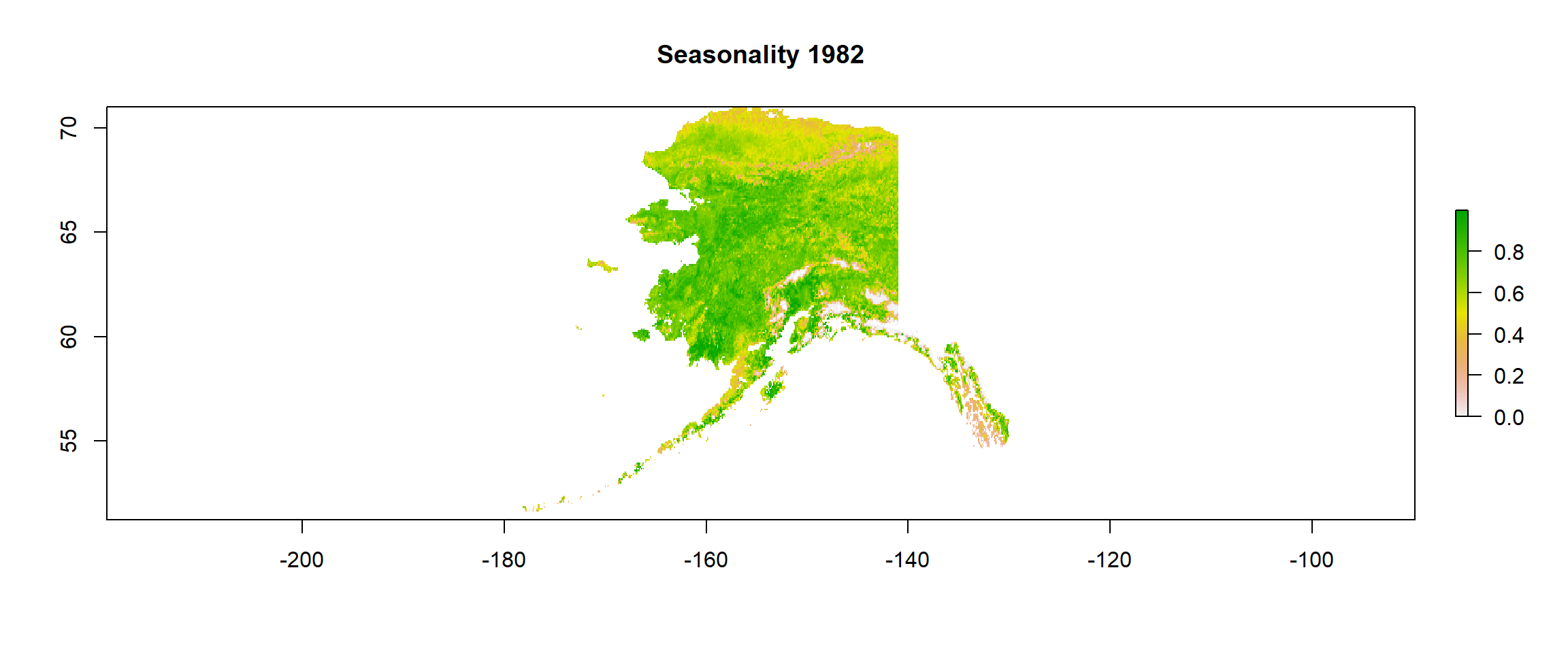

plot(gimms_seasonality, main = "Seasonality 1982") # inspection time!

# Save data
writeRaster(x = gimms_seasonality, # which raster to save
            file = paste(Dir.Data, "1982Season", sep="/"), # which file to save to
            format = "CDF", overwrite = TRUE) # which format to use and whether to overwrite
## class      : RasterLayer
## dimensions : 237, 590, 139830  (nrow, ncol, ncell)
## resolution : 0.083, 0.083  (x, y)
## extent     : -179, -130, 51, 71  (xmin, xmax, ymin, ymax)
## crs        : +proj=longlat +datum=WGS84 +no_defs
## source     : D:/Documents/Website/content/courses/BFTP - Biome Detection/Data/1982Season.nc
## names      : layer
## values     : 0, 1  (min, max)
## zvar       : layer
Next
